BTW-1
BAKWAY
BTW-001

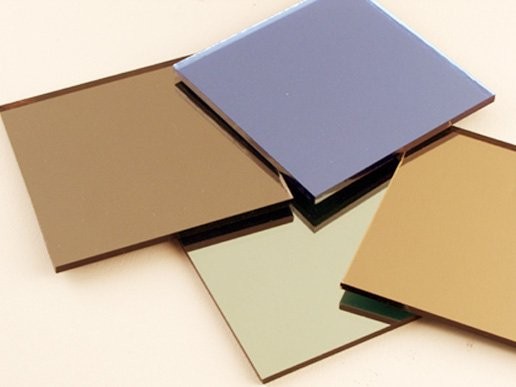

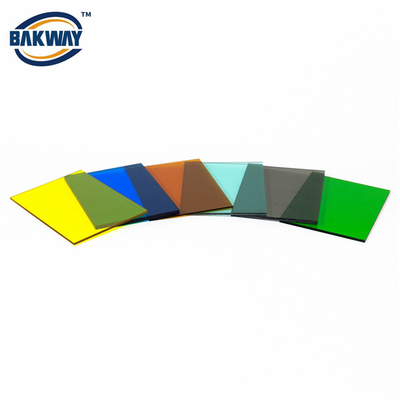

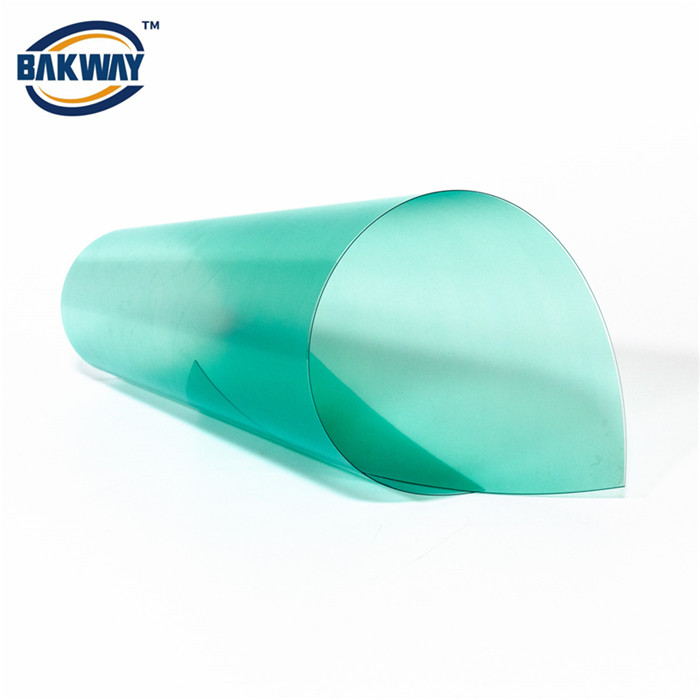

The flat polycarbonate plate is 200 times stronger than glass, but it weighs less than half of glass. It has extraordinary impact resistance and durability, and can provide various shades and transparency, from glass-like transparent polycarbonate sheets to opaque, translucent or colored sheets with different transparency and light transmittance and diffuse reflection.
The solid polycarbonate sheet has impact resistance, ease of manufacture, and excellent ink adhesion, making it an ideal solution for digital printing, displays, thermoformed signs, and backlit and illuminated signs.
Product name | Polycarbonate Solid Sheet /Boar |
Color | Clear, Opal, Blue, Lake Blue, Green, Bronze, or Customized |
Width | 2100mm |
Thickness | 0.1-25mm |
Material | 100% bayer maaterial or sabic material or customized |
Weight | kg/sqm=1.2*thickness |
Surface | UV protection, Anti-fog,Anti-static,hardening,fire retandant,etc. |
Warranty | 10-Year |
Package | Tray/craton |
Application | Commercial Curtain Wall, Greenhouse, Carport, Awning, Billboard, Security Protection, Highway Sound Insulation, etc. |
FEATURES | UNIT | DATA |
Specific Gravity | g/cm2 | 1.2 |
Light Transmission | % | 88 |
Impact Strength | J/m | 850 |
The Bending Strength | N/mm2 | 100 |
Tensile Strength | N/mm2 | ≥60 |
Modulus of Elasticity | mpa | 2400 |
Tensile Stress at Break | mpa | ≥65 |
Elongation at Break | % | >100 |
Specific Heat | KJ/KG · k | 1.17 |
Heat Conductivity | W/m2· K | 0.2 |
HeatDeflection Temperature | °C | 140 |
Coefficientof Thermal Expansion | mm/m2 ·°C | 0.067 |
Range of Temperature | °C | `-40~~ +120 |
Effect of Soundproof | 10mm solid sheet | 33 db attenuation |
