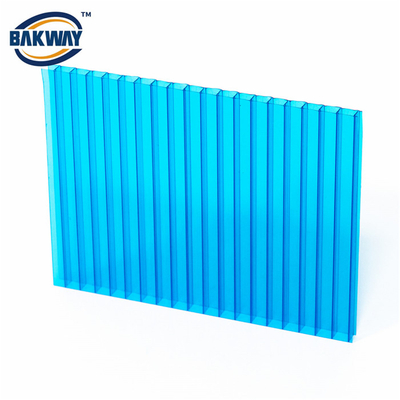

6mm Twin Wall / Double Layer Hollow PC Sheet

Brand:
MOQ:
Place of Origin:
Delivery Time:
Start Port:
Availability:
Quantity:
  • BTW-2

  • BAKWAY

  • 6mm Twin wall


  • Hollow panels are a series of multi-wall polycarbonate sheet products, which are characterized by a honeycomb structure with at least two walls and connecting ribs. This double or multilayer structure can form an insulated air space (unit), which helps reduce the penetration of heat (thermal) energy, resulting in cooler summer areas and cooler months to warmer areas.

  •  In short, the structure of the hollow panel can produce an energy-saving, strong and impact-resistant sheet that is much lighter than solid polycarbonate, acrylic or glass panels. Hollow panels provide higher energy efficiency than any single-layer thin panels. There are many options for our hollow polycarbonate sheets. Double-layer hollow board, three-layer hollow board, four-layer hollow board, m-shaped hollow board, honeycomb hollow board.

  • Popular applications of double-layer polycarbonate panels and multilayer polycarbonate panels are roofs, glass, walls or the exterior of buildings, internal partitions, displays, etc.


Product name

Polycarbonate Hollow Sheet /Boar

Color

Clear, Opal, Blue, Lake Blue, Green, Bronze, or Customized

Available size

2.1m*6m

Material

100% bayer material or sabic material or customized

Weight

kg/sqm: 0.68(4mm), 0.83(6mm), 1.15(8mm), 1.35(10mm), 1.6(12mm)

Surface

UV protection, Anti-fogdrop

Warranty

10-Year

Package

Tray/craton

Tape

Twin wall polycarbonate sheet:2.8mm - 12mm

Three wall polycarbonate sheet:6mm-15mm

Four wall polycarbonate sheet:8mm - 20mm

Honeycomb polycarbonate sheet:8mm - 12mm

2400mm,5800mm,6000mm,11800mm,12000mm

or according to your requirement

Thickness

4mm, 6mm, 8mm, 10mm, 12mm, 14mm,16mm, 20mm, 25mm

Samples

Free samples will send you for test

Application

Warehouse,workshop,plant house,canopy




微信图片_20210419144040



Light Transmission

Depending on the color, the transmittance can be up to 0-89%.

Energy saving

Low heat transfer coefficient (K value), good thermal insulation, energy saving is   1.5-1.7 times of the same thickness of glass.

Light

The weight is 1/15 of the same thickness of glass.

Impact Strength

Good toughness, not easy to be damaged in transportation, installation and use; Its impact strength is 250 times that of glass and 30 times that of plexiglass.

Resistance to aging

The surface of the product contains a UV-resistant coextruded layer, outdoor weather resistance is good, long-term use still maintain good optical properties and mechanical properties

Resistance to wind pressure

Wind pressure performance up to the national standard GB/T 7106-2008 level

Large temperature difference

Long-term use temperature: -40c to 120C.

Effect of Soundproof

Polycarbonate with hollow structure has good sound insulation and can effectively reduce noise.

Flame retardant

According to the national standard gb8624-2012 is class B1 flammable.

Easy to install

The minimum bending radius is 175 times the thickness of the plate.
