BTW-1
BAKWAY
BTW-001-1

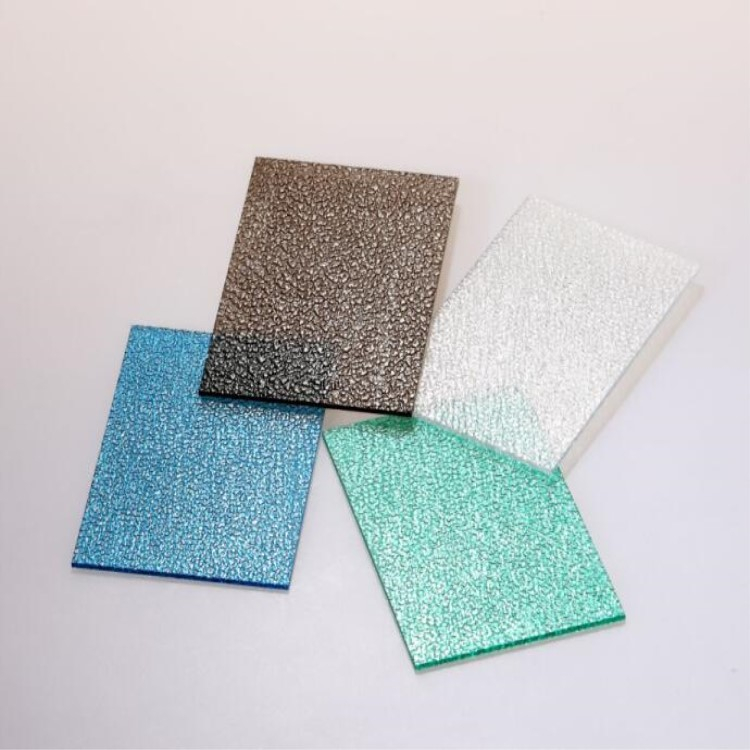

| Product name | Polycarbonate Embossed Sheet |
| Color | Clear, Opal, Blue, Lake Blue, Green, Bronze, or Customized |
| Width | 1220-2100mm |
| Thickness | 1-10mm |
| Material | 100% byer maaterial or sabic material or customized |
| Weight | kg/sqm=1.2*thickness |
| Surface | UV protection, Anti-fog, Anti-static, hardening, fire retandant, etc. |
| Warranty | 10-Year |
| Package | Tray/craton |
| Application | Commercial Curtain Wall, Greenhouse, Carport, Awning, Billboard, Security Protection, Highway Sound Insulation, etc. |
FEATURES | UNIT | DATA |
Specific Gravity | g/cm2 | 1.2 |
Light Transmission | % | 88 |
Impact Strength | J/m | 850 |
The Bending Strength | N/mm2 | 100 |
Tensile Strength | N/mm2 | ≥60 |
Modulus of Elasticity | mpa | 2400 |
Tensile Stress at Break | mpa | ≥65 |
Elongation at Break | % | >100 |
Specific Heat | KJ/KG · k | 1.17 |
Heat Conductivity | W/m2· K | 0.2 |
Heat Deflection Temperature | °C | 140 |
Coefficientof Thermal Expansion | mm/m2 ·°C | 0.067 |
Range of Temperature | °C | `-40~~ +120 |
Effect of Soundproof | 10mm solid sheet | 33 db attenuation |
